CHAIN PULLEY BLOCKS

We supply Chain Pulley Blocks of the capacity of 0.5 TON To 40 TON . All the manufacturing processes are done in the state of the art workshops. The units are equipped with sophisticated machinery and latest tools like Proof Load Testing Machine, Broaching Machine, Mechanical Press, CNC Lathe, and Grinding Machine etc.

Triangular Chain Pulley Blocks are manufactured best in class, using superior quality materials from initial stage of manufacturing and Quality checks are carried out at all important manufacturing stages.

1/6
Click on each Product for Catalogs

Features & Specifications:

  • has double guide rollers with two pawls and two SS304 springs in each pawl for extra security.

  • Sturdy construction

  • High efficiency

  • Longevity

  • Minimum Lifting Height: 3000 mm

  • Overload tested to 150% of safe working load

  • Anti-corrosive, powder coated, & aesthetically good finish

  • Precision splined  load wheel for safety at jerk loads, duly hardened & tempered

  • Powder coated strong and safe IS:15560 hooks ISI marked with S S safety latches

  • Lower head room

  • Wear resistant grade 80 alloy load chain

  • Friction disc brakes for safety in use

  • Additional test certificate as per factory act on form 11 or IDLR Test certificate available on request

  • Annual testing and service options available

  • Available up to 40 ton

Features:

  • Variable speed adjustment suitable for curved beam of 1200mm radius

  • Sturdy construction

  • Precise operations

Our trolleys are equipped with ball bearings and geared wheels operated through Chains and hand chain wheel for to and fro motion. Developed in compliance with industrial standards, these are also available in customized specifications to meet the various needs of the customers.

Available in 2 options:

  1. Tapered wheels for tapered beams

  2. Straight trolley wheels for fabricated beam or H-beams

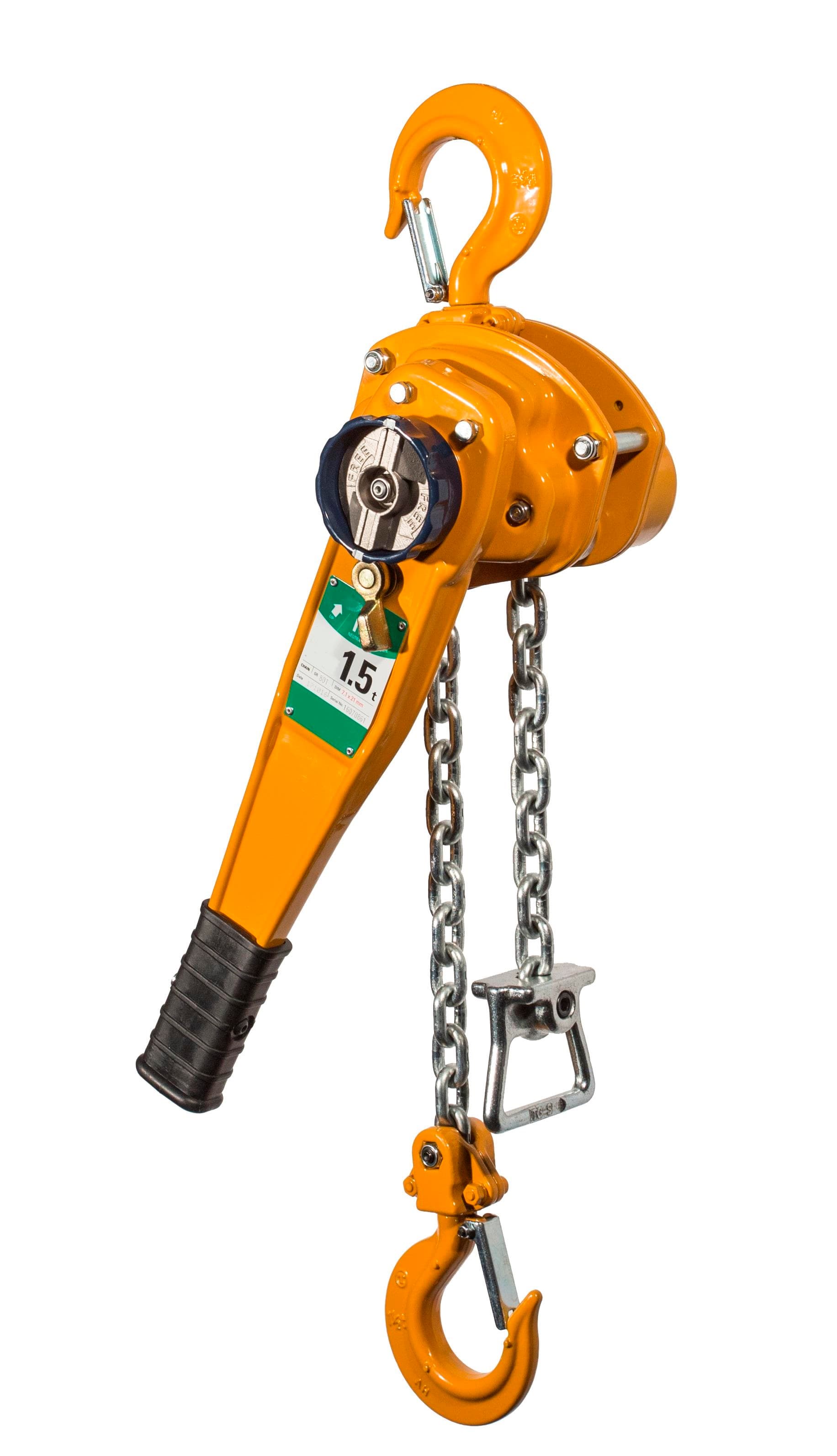

For Lifting, Lowering, Fastening and Pulling.

  • Automatic Switching to Free Pulling Mode

  • Easy Maintenance

  • Plated Chain

  • Locked Chain Release Mechanism

  • Knobbed Hook
