Wire Rope Accessories.
Every termination.

Thimbles to IS 2315, spelter sockets, US-type wedge sockets, US-type wire rope clamps and bull-dog grips — every fitting needed to terminate, fix or protect a wire rope.

Browse Accessories →Request a Quotation
Wire-rope eyeThimbleBull-dog grip
Standard wire-rope terminationIS 2315 · US-type
Categories
5
Stocked types
5
Standards/ choose
01IS
02US
Materials/ choose
01Carbon Steel
02Stainless Steel
— Accessory taxonomy

Five categories.
All in stock.

Wire rope thimble
01 · Thimble
Thimbles
IS 2315 · heart-shape protection at the eye.
PDF ↗
Spelter socket
02 · Spelter
Spelter Socket
Open / closed — 100 % rope efficiency.
PDF ↗
03 · Wedge
Wedge Socket
Field-replaceable termination for cranes.
PDF ↗

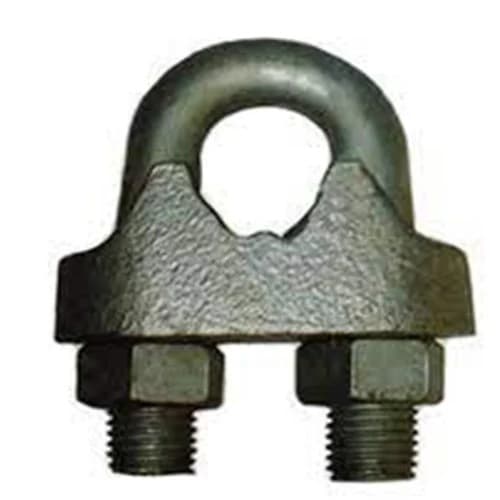

US wire rope clamp
04 · US Clamp
US-type Clamp
US-type wire rope clamps, forged.
PDF ↗
05 · Bull Dog
Bull-Dog Grip
Forged saddle & U-bolt grip.
PDF ↗
— Fitting anatomy

How each one is built.
Where every part goes.

Five terminations, drawn to spec — pin holes, wedge angles, saddle orientation and the difference between live and dead ends. Useful when picking the right fitting for a job, or when verifying that an assembled termination is right-side-up.

Wire-rope eyeHeart thimbleSpliced eyeIS 2315 · Wire-rope thimble
01 · Thimble

Heart-shape thimble eye

Hot-dipped galvanised steel insert that lines the eye of a wire-rope sling. Protects the rope from chafing where a shackle pin or hook bears on it. Manufactured to IS 2315 dimensions.

Open spec sheet
Wire ropeSocket bodySplayed strandsSpelter fillPin holeSpelter socket · 100 % rope efficiency
02 · Spelter Socket

Open or closed spelter socket

Conical forged-steel socket. The wire-rope strands are fanned out inside the cone and locked with poured zinc spelter or resin. Maintains 100 % of the rope's breaking strength — the strongest termination available.

Open spec sheet
Live end (load)WedgeBodyDead endWedge socket · Field-replaceable termination
03 · Wedge Socket

US-type wedge socket

Open trapezoidal body with a drop-in wedge. The live end takes the load, the dead end loops back through and is secured. Designed to be re-installed in the field — common on cranes where the rope needs periodic replacement.

Open spec sheet
U-boltHex nutsSaddle baseTwo ropes (live + dead)US-type wire rope clamp · Saddle-on-live
04 · US-type Clamp

Forged saddle & U-bolt

Forged steel saddle with a U-bolt straddling both rope sections. Mantra: "Never saddle a dead horse" — the saddle sits on the live (loaded) end, the U-bolt grips the dead (loop-back) end. Multiple clamps spaced at 6× rope diameter form a complete eye.

Open spec sheet
Forged saddleU-bolt armsHex nutsBoth rope endsBull-dog grip · Forged top, single saddle
05 · Bull-Dog Grip

Heavy-duty forged grip

British-pattern grip — single forged saddle with U-bolt and twin hex nuts. Both rope ends pass under the same saddle, with the U-bolt clamping from above. Common on guy ropes, marine rigging and where a heavier-duty grip than the US-type clamp is required.

Open spec sheet
— Request an Accessories Quotation

Tell us the rope.
We'll ship the fittings.

Send the rope diameter, the termination type and the quantity — we'll come back with model, finish, price and lead time.
